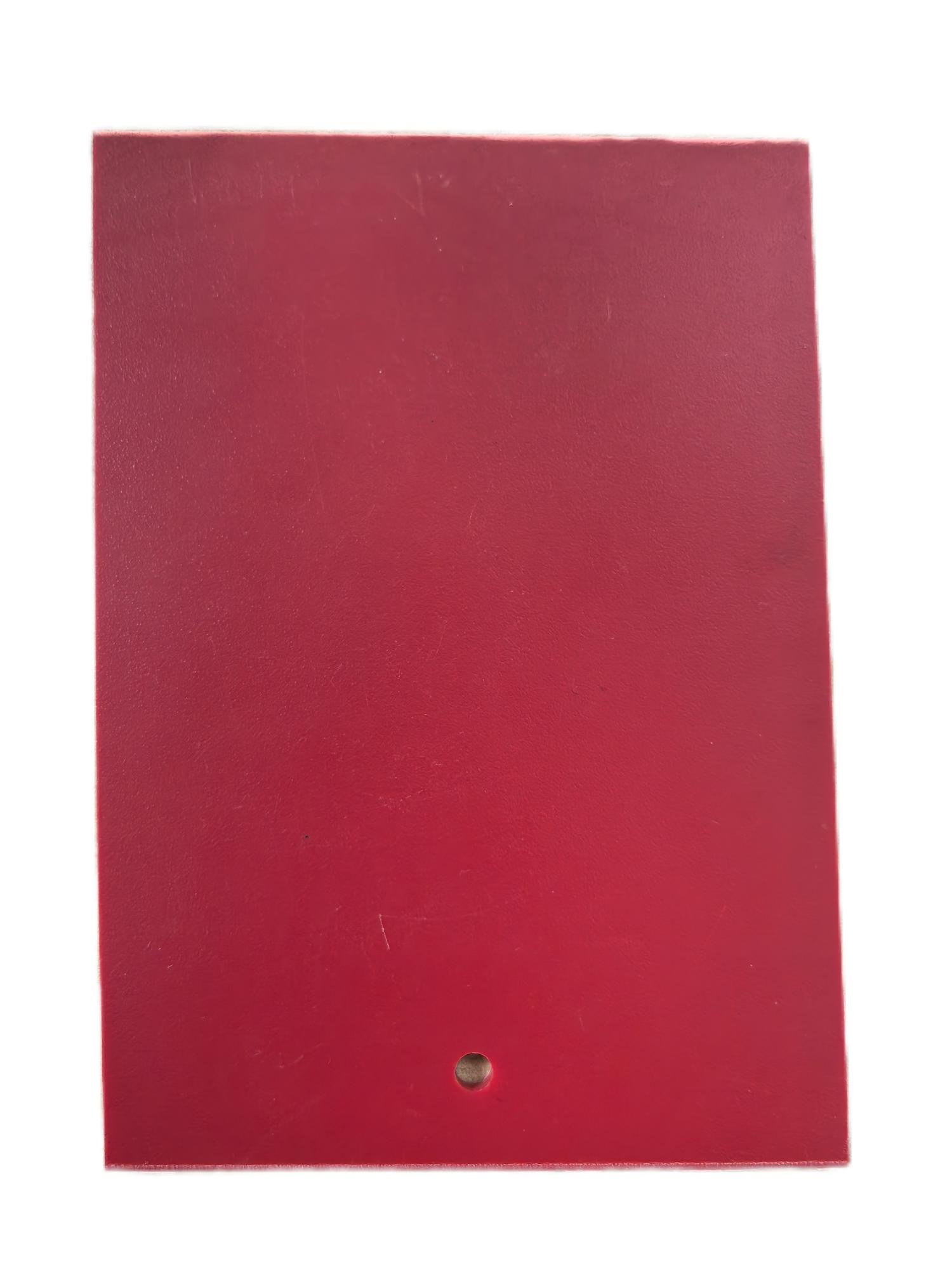

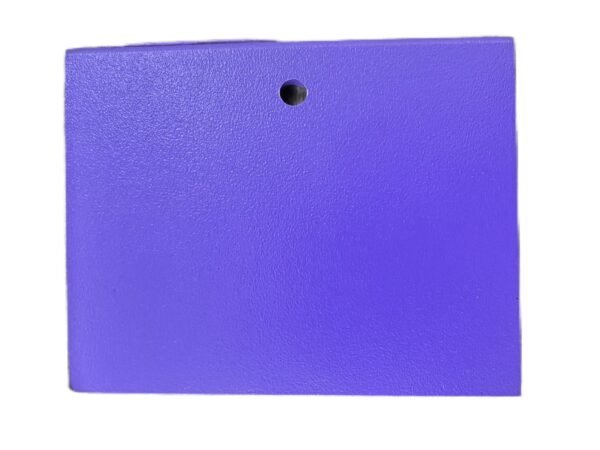

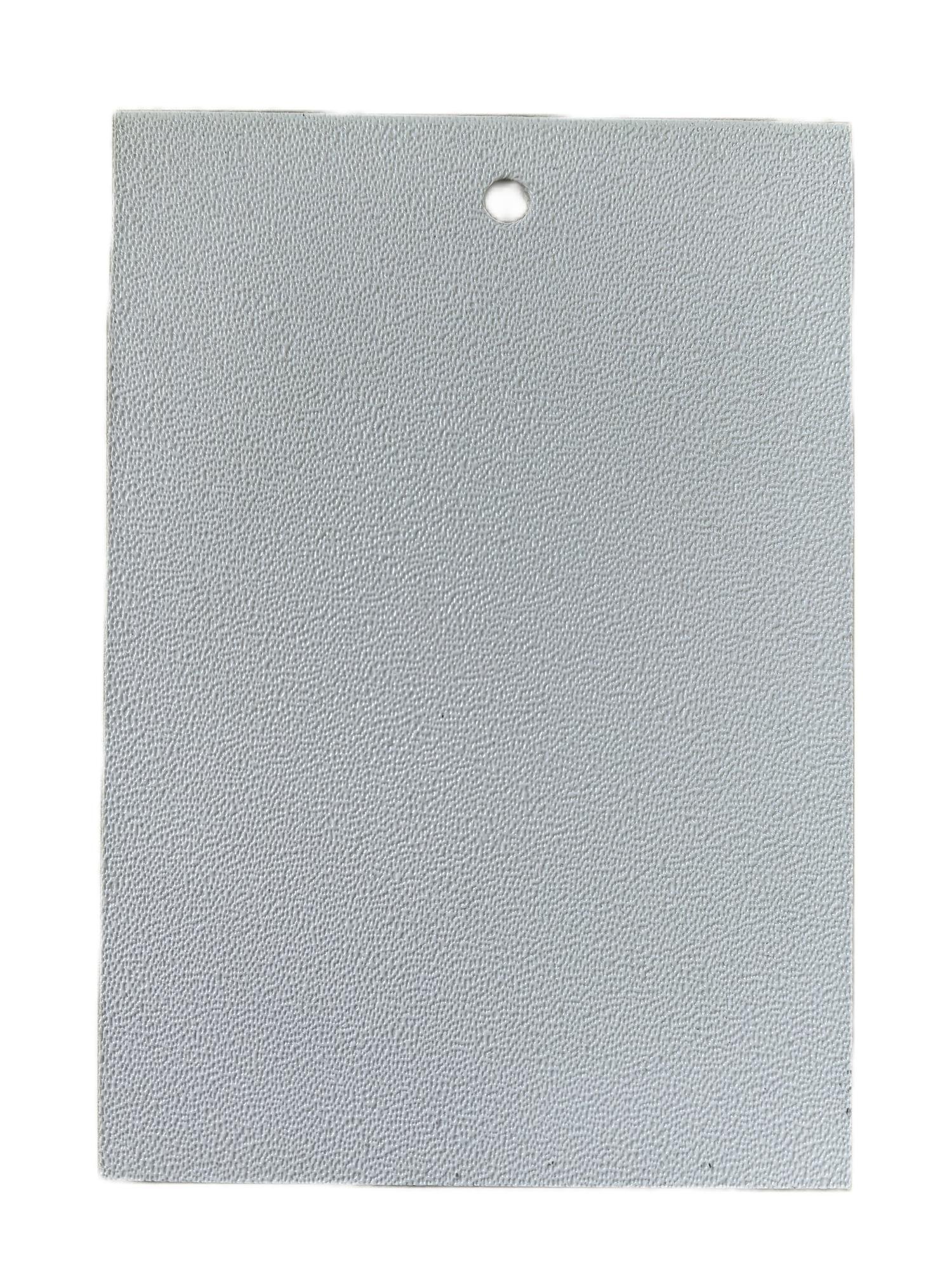

Flame Retardant ABS Plastic sheets

Flame Retardant ABS Plastic is a halogen-free or halogenated engineering thermoplastic that incorporates flame retardant additives designed to inhibit combustion and meet stringent safety standards such as UL94 V-0. It is widely used in the electronics, automotive and construction industries and combines the inherent strength of ABS plastic with enhanced flame retardancy for high-risk environments.

Description

Key features and advantages of ABS plastic:
Outstanding flame retardancy
UL94 V-0/V-1 certified (self-extinguishing within 3 seconds with no dripping of flaming particles).
High ignition temperature for hot wires (up to 850°C, meeting IEC 60695-2-12).
Mechanical properties
High impact strength (≥18 kJ/m², Izod notch), equivalent to standard ABS plastic.
Heat deflection temperature (HDT) of 85-100°C at 1.8 MPa, making it ideal for electrical enclosures. Halogen-free option (IEC 61249-2-21, <900 ppm Br/Cl).
Food contact application grade compliant with RoHS 2.0, REACH, and FDA standards.

2. Product specifications and grades

range	Specifications	Target application
thickness	0.5mm – 15mm (sheet)	Thin: PCB housing Thick: EV battery tray
Color Options	Black, white, gray, customized (RAL/Pantone)	Anti-lock Braking System
Emission reduction	Halogen-free (phosphorus/nitrogen) Halogenated (bromine)	Halogen-free: medical devices Blade-like: industrial panels

3. Popular industry applications

① Electronic appliances

Power Adapter: UL94 V-0 ABS plastic housing prevents fire hazard in overload conditions.
Smart Home Hub: Non-grade halogen ensures low smoke density (<200 Ds) during combustion.

② Auto parts

Electric vehicle battery housing: flame retardant ABS plastic, CTI＞600V (relative leakage index).
Among them: in compliance with FMVSS 302 (vertical burning speed <100mm/min)

③ Architecture and background

Electrical conduit: ABS plastic tube meeting the glow wire 850°C standard (IEC 60695-2-11).
Public transport: protruding ABS frame (EN 45545-2 HL3 certified).
