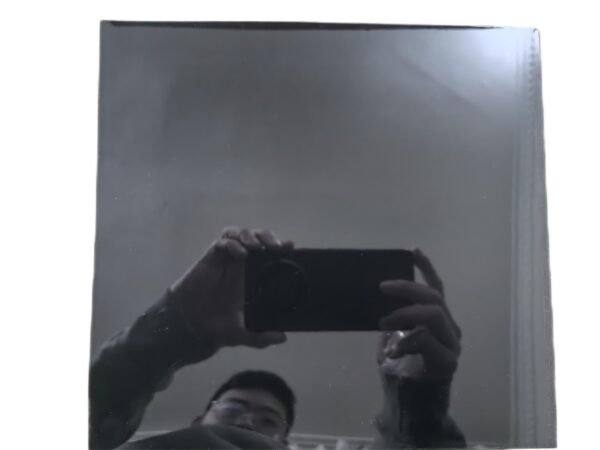

High-Gloss ABS Plastic Sheets
High-Gloss ABS Plastic Sheets
ABS Sheets: High-Performance Engineering Thermoplastic
ABS sheets leverage the synergistic “trinity performance” of Acrylonitrile (rigidity), Butadiene (impact resistance), and Styrene (processability) to deliver unmatched industrial value.
Core Technical Advantages
-
Extreme Impact Resistance: Izod notch impact strength ≥25 kJ/m² (retains toughness at -40°C)
-
Precision Formability: Heat deflection temperature 85-105°C (1.8MPa), thermoforming shrinkage 0.5%
-
Certified Safety: UL94 V0 flame-retardant & FDA 21 CFR compliance
Customization Capabilities
| Parameter | Standard Range | Enhanced Properties |
|---|---|---|
| Thickness | 0.5-10mm (±0.05mm) | UV-stabilized/Anti-static |
| Sheet Size | 48″x96″ to 78″x157″ | Glass/Carbon fiber reinforcement |
| Surface Finish | Glossy/Matte/Textured | 30%-80% Light transmission |
Industry-Specific Solutions
-
Automotive: Instrument panel substructures (40% weight reduction vs. steel)
-
Medical: Radiation-shielding enclosures (V0 flame retardancy)
-
Consumer Tech: Robot collision buffers (100,000+ impact cycle tested)
Advanced Manufacturing Assurance
Produced on Bellstedt co-extrusion lines with real-time laser thickness monitoring (±0.03mm accuracy). Rapid-response service includes:
✓ 72-hour prototyping
✓ 15-day bulk order delivery
✓ Annual capacity: 15,000+ metric tons
Certified to ISO 9001/14001 standards with full SGS test reports.
Description
1. Key Features & Advantages ✅
- Mirror-like Gloss: Surface gloss >90 GU (measured at 20°), comparable to glass, enhancing product luxury.
- High Impact Resistance: 5x stronger than standard acrylic, ideal for shock-prone packaging or transport.
- Easy Processing: Compatible with CNC cutting, thermoforming, vacuum forming, UV printing, electroplating, and screen printing.
- Eco-Safe: FDA food-contact compliant (optional), RoHS 2.0 certified, free of heavy metals.
2. Product Specifications & Selection Guide 📐
| Parameter | Range | Applications |
|---|---|---|
| Thickness | 0.3mm – 15mm | 0.3-2mm (packaging, signage) 3-8mm (appliance panels, automotive trim) 10-15mm (display stands) |
| Dimensions | 1220x2440mm (standard) Custom widths up to 2000mm |
Cost-effective mass production Custom shapes to minimize waste |
| Colors | Transparent, Black, White, Metallic (Champagne Gold/Gunmetal) Pantone color matching |
Transparent ABS replaces acrylic Metallic finishes for luxury electronics |
| Special Features | Anti-static (10^6-10^9Ω) Flame-retardant (UL94 V-0/V-1) UV-resistant (5-year outdoor use) |
Medical/electronic packaging Architectural cladding |
3. Industry Applications 🏆
① Consumer Electronics
- Smartphone Frames: High-gloss black ABS replaces glass, reducing weight and improving drop resistance (search term: mirror-finish ABS phone cases).
- Earbud Charging Cases: Electroplating + UV coating achieves metal-like finishes at 40% lower cost vs. aluminum.
② Automotive Interior Upgrades
- Dashboard Trims: Heat-resistant ABS (-40℃~120℃), TS16949 certified.
- Door Handle Panels: Mold-in-mirror technology eliminates painting, reducing VOC emissions.
③ Luxury Packaging
- Premium Gift Boxes: 1.5mm white ABS with laser-engraved logos, >90% recyclability.
- Cosmetic Display Trays: 92% light-transmissive transparent ABS, replacing fragile acrylic.
4. High-Gloss ABS vs. Competing Materials ⚖️
| Property | High-Gloss ABS | Acrylic | Polycarbonate | Glass |
|---|---|---|---|---|
| Density | 1.05-1.20 g/cm³ | 1.18 g/cm³ | 1.20 g/cm³ | 2.50 g/cm³ |
| Impact Strength | Excellent (25 kJ/m²) | Poor (2 kJ/m²) | Superior (60 kJ/m²) | Very Poor |
| Processing Cost | Low (molding/cutting) | +30% polishing time | Anti-static treatment | High safety risks |
| Eco-Friendliness | Recyclable | Poor degradability | BPA release at high temps | Non-recyclable |
